Bristan Wall Mount Fast Fit Fixings Kit

Bristan Wall Mount Fast Fit Fixings Kit – WMNT10-C

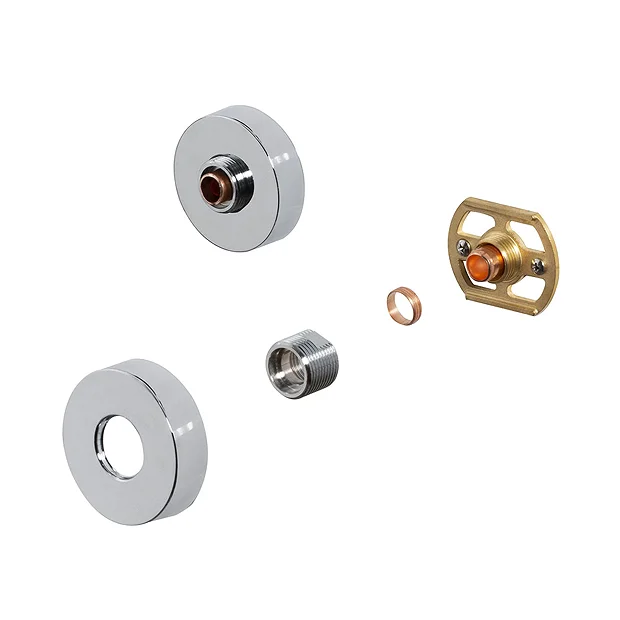

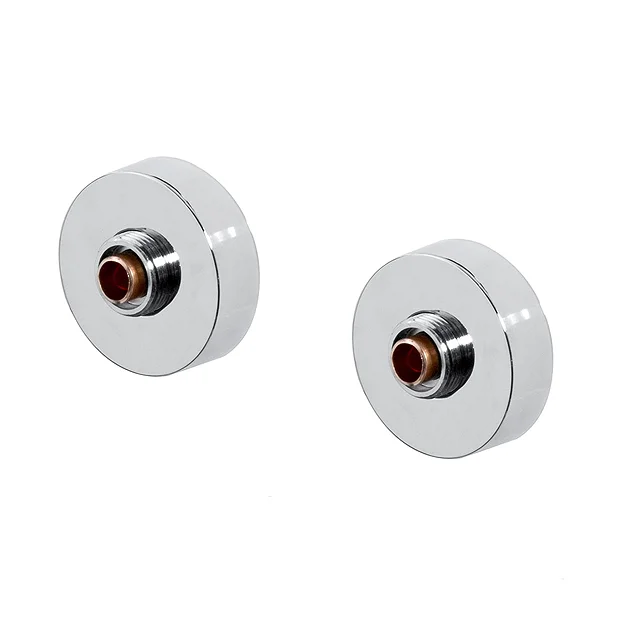

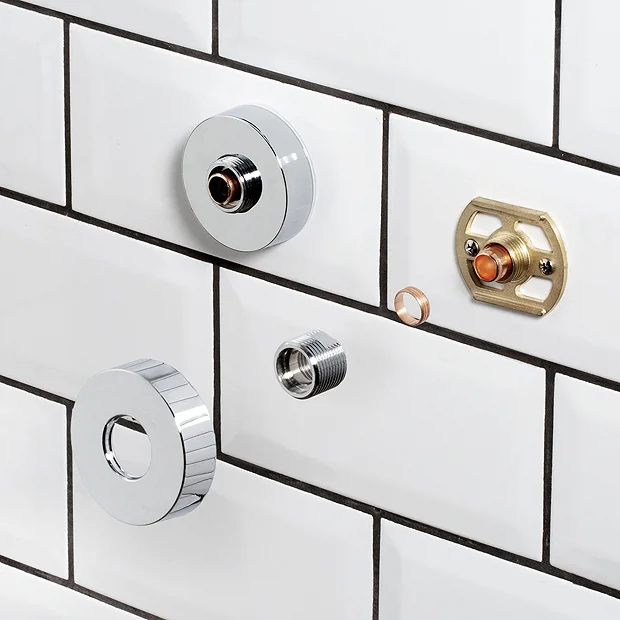

The Bristan wall mount fixing kit is the perfect compliment to installing any bar shower valve or wall mounted bath shower mixer tap that connects with 3/4″ BSP threads. Made from brass with copper olives and ABS chrome plated cover shrouds. The wall mount design allows the pipes to be left and capped off during the tiling stage, and then the brackets are fitted onto the finished tiled surface. Once the pipework has been cut to length, the wall brackets simply screw to the tiles, and the olive compression joint to the 15mm pipework before the chrome plated cover shrouds are screwed on and the bar valve 3/4″ nuts are screwed at the final stage of installation.

Product Details

• Main Construction Material – Brass
• 15mm inlet connections
• G 3/4″ outlet connections
• Inlet Connections: 15mm compression
• Outlet Connections: G ¾”
• Enables rigid fixing of exposed bar shower valves to 15mm pipework protruding through cavity wall surface

5 Year Manufacturer’s Warranty
